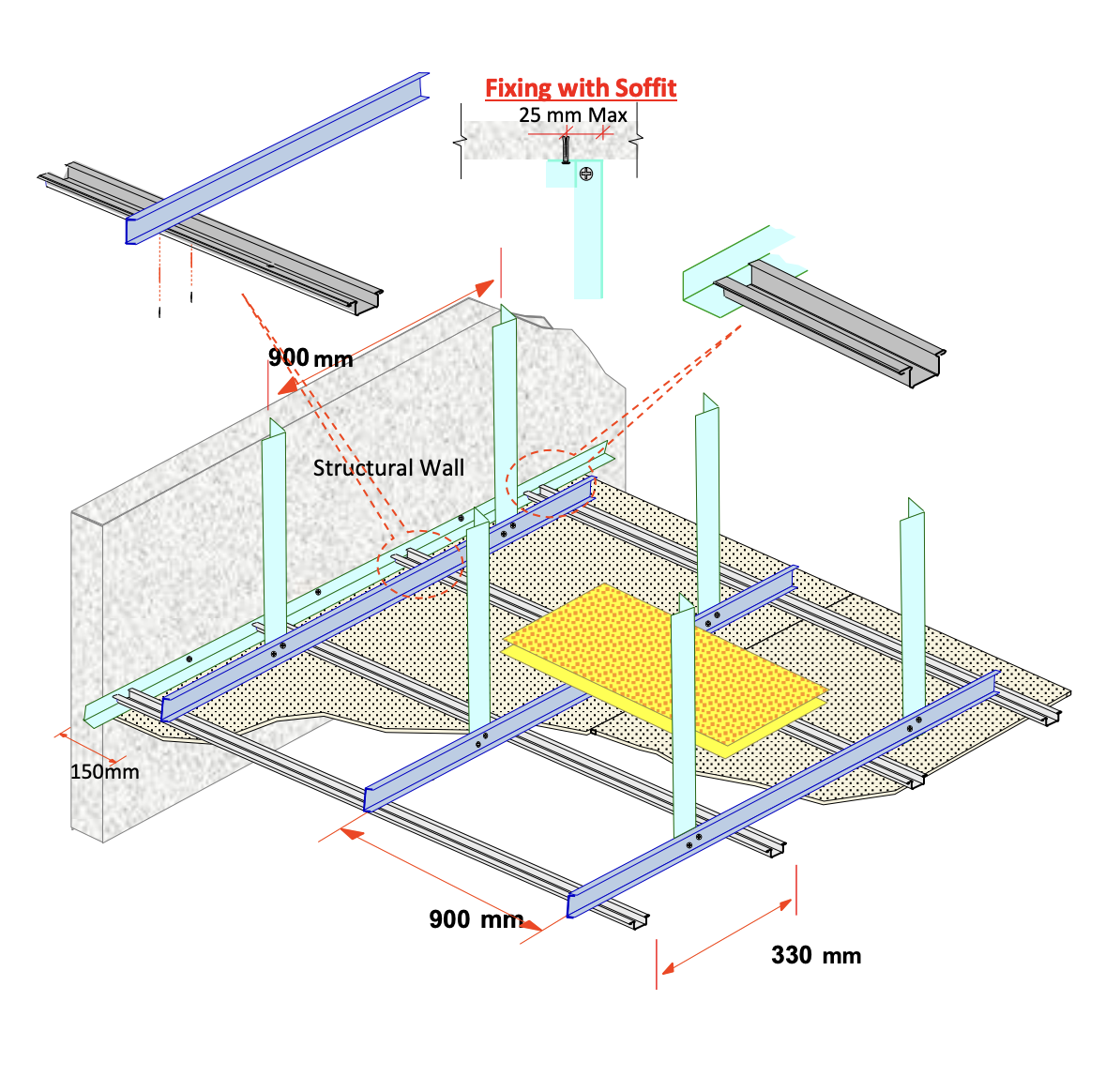

Overview - Perforated Ceiling
System components
- Perforated board 12.5 mm Board on bottom
- Main channel 38x12x12, 0.50 mm 900 mm max centers
- Furring channel 64x35x23, 0.50 mm 330 mm max centers
- GI L-angle 25x25, 0.50 mm 900 mm max centers
- GI L-angle 25x25, 0.50 mm as perimeter wall angle
- Wedge anchor - 6x40 mm as suspension anchor
- Hammer screw, Size: 6x40 mm 600 mm max centers
- Waferhead screw M4.2x13 Metal-to-metal fixing
- Self tapping screw M3.5x25 mm Boards to metal fixing
- JC100 - Jointing compound Finishing
- Smoke and acoustic sealant sausage - CP 506 8mm bead perimeter joints

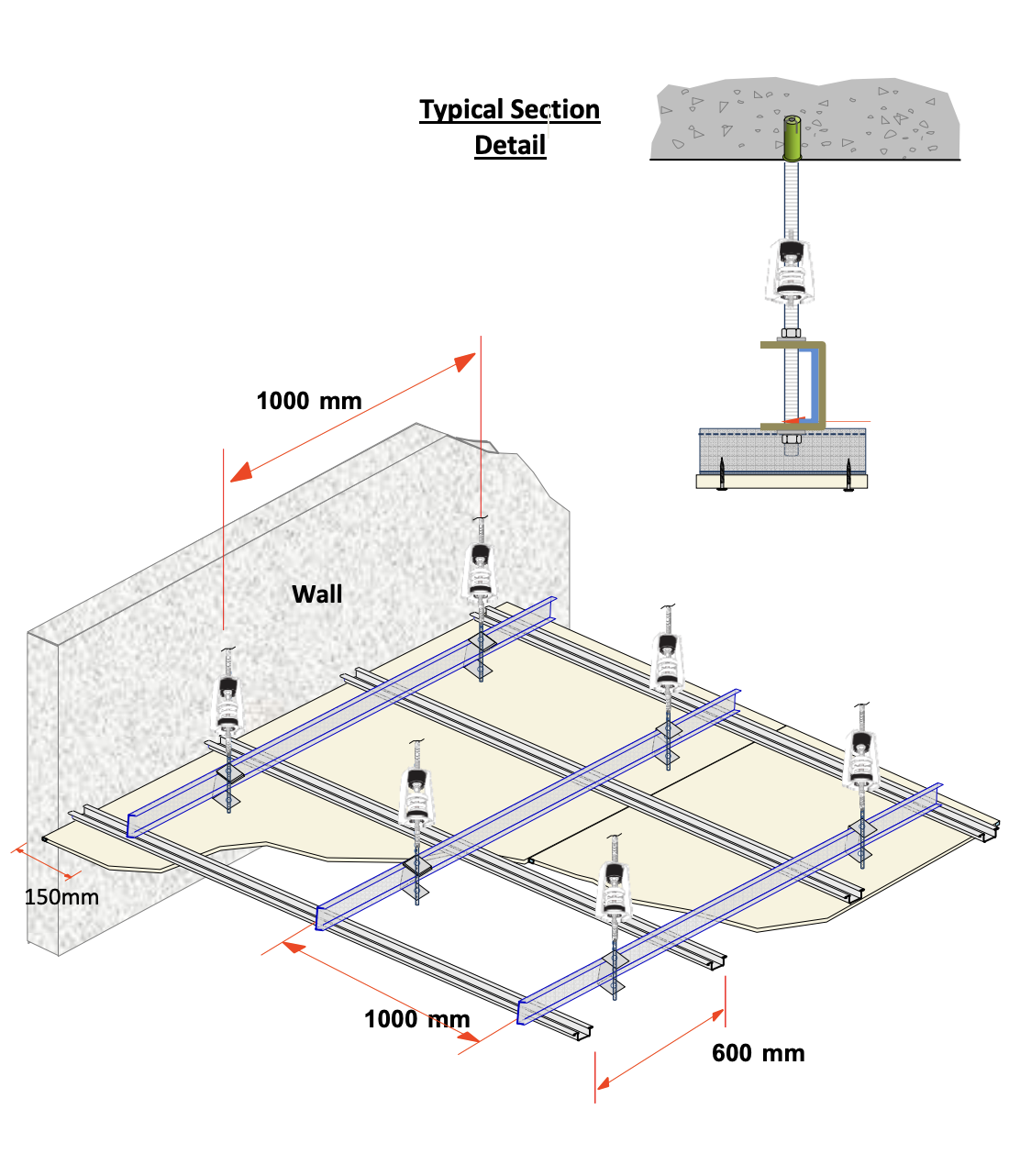

Overview Resilient Ceiling
System components
- 12.5 mm Gypsemna regular gypsum board Board on bottom
- Main channel 38x12x12, 0.50 mm (As main runner) 1,000 mm max centers
- Furring channel 64x35x23, 0.50 mm (As cross runner) 600 mm max centers
- Spring Isolation hanger with rubber (for noise and vibration isolation) Zero
- GI threaded rod, M8 (As suspension) 1,000 mm max centers
- M8 Nut Zero
- M8 Washer Zero
- Main channel clamp 38mm to suit M8 Rod Zero
- M8 X 40 push in anchor As suspension anchor
- Waferhead screw M4.2 x13 Metal to metal fixing
- Self tapping screw M3.5 x 25 mm Boards to metal fixing
- Jointing tape - fibre For joint finishing
- JC100 - Jointing compound For joint finishing
- Fire Block - Fire & acoustic sealant Around ceiling perimeter

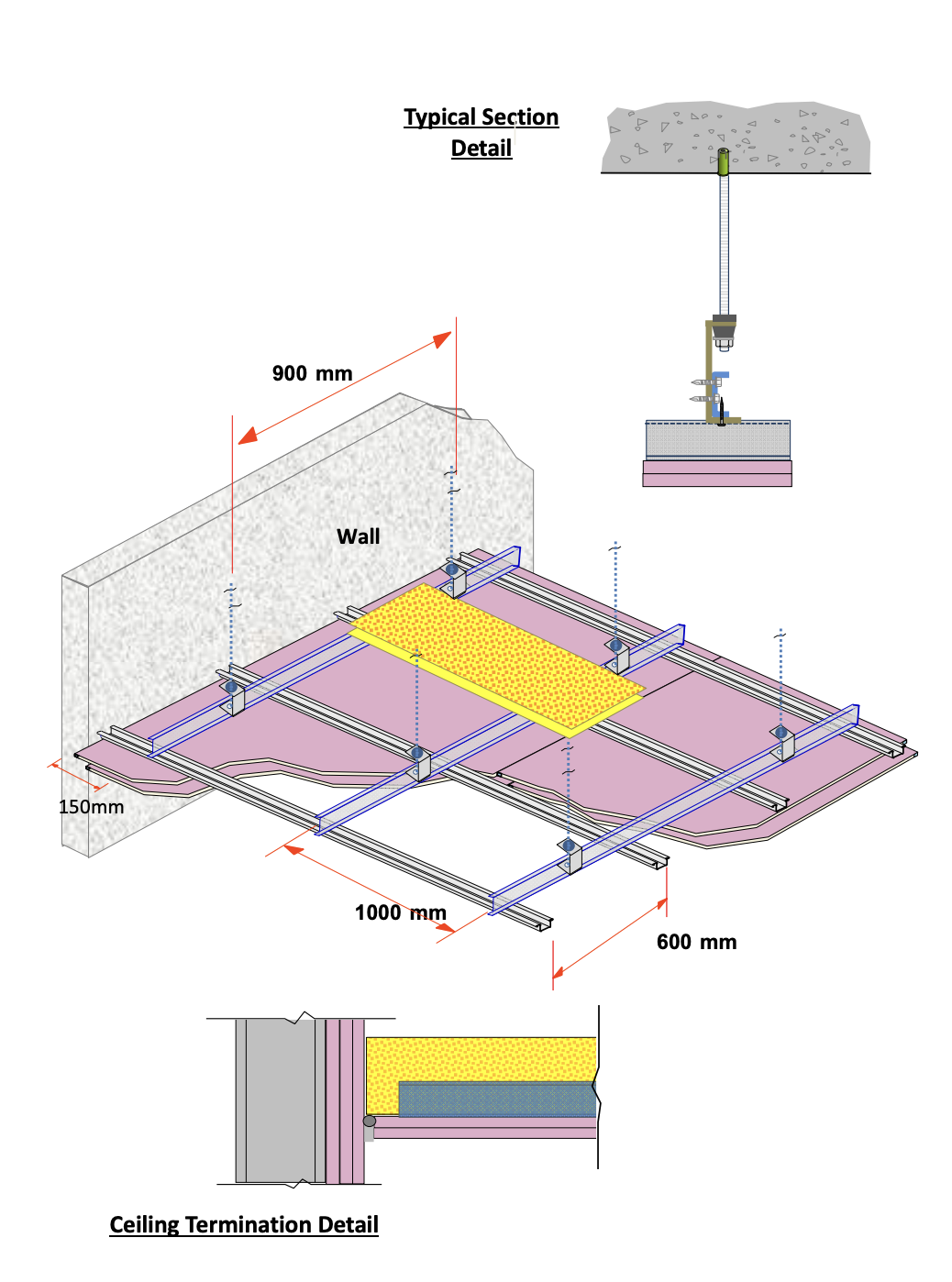

Overview Mass Barrier Ceiling
Double Layer - Mass Barrier Ceiling with Isolation Hanger & Rod Suspension – Resilient Ceiling System
System components
- 15mm Gypsemna firewall board 1st layer
- 15mm Gypsemna firewall board 2nd layer
- Main channel 38x12x12, 0.90 mm (As main runner) 1,000 mm max centers
- Furring channel 64x35x23, 0.55 mm (As cross runner) 600 mm max centers
- GI Threaded rod, M6 900 mm max centers
- M6 Nut Zero
- M6 Washer Zero
- Phonic U - Hanger with rubber Zero
- Waferhead screw M4.2 x13 Metal to metal fixing
- Self Tapping Screw M3.5 x 35 mm - 1st Layer Board to metal fixing
- Self Tapping Screw M3.5 x 45 mm - 2nd layer Board to metal fixing
- Jointing tape - Fibre For joint finishing
- JC100 - Jointing compound For joint finishing
- Gypsemna audio Insul 75 mm thick 16kg/m3
- Hex head self drilling screws M4.8 x 19 Zero
- Fire block - Fire & acoustic sealant Around ceiling perimeter
- Backing rod 10 mm Around ceiling perimeter
