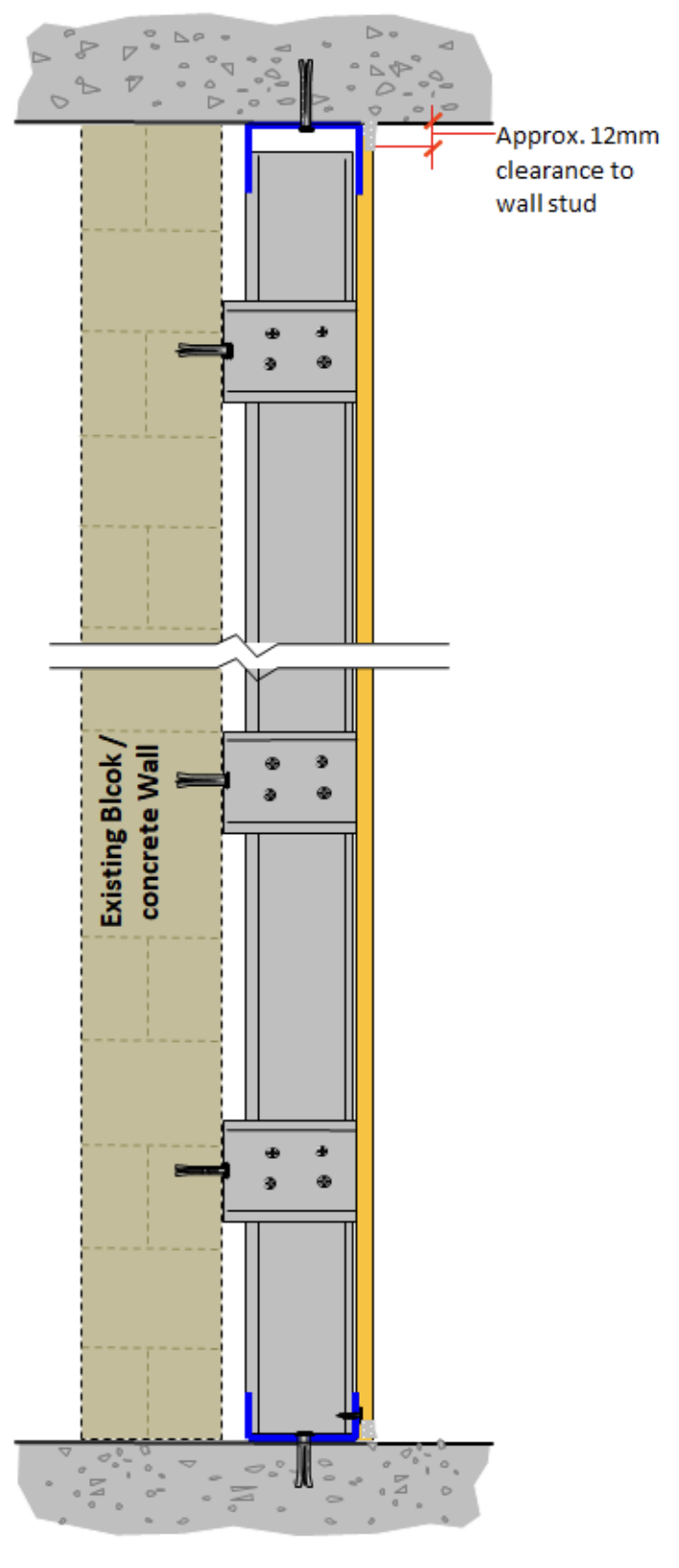

SYSTEM COMPONENTS
- 12.5 mm Gypsemna tuff board Single layer board on right side
- Gyp 52 mm x 50mm x 0.60 mm deflection head track As top track
- Gyp 52 mm x 0.50 mm wall track As bottom track
- Gyp 52 mm x 0.50 mm wall track 1200 mm Bracing
- Gyp 50 mm x 0.50 mm wall stud - 3.0m spaced 600 mm centers
- Wedge anchor - 6 x 40 mm spaced 600 mm centers
- Waferhead screw M4.2 x 13 Metal-to-metal fixing
- Self tapping screw M3.5 x 25 mm For board fixing
- Jointing tape - Fibre For joint finishing
- JC100 - Jointing compound For joint finishing
- Shield anchor M6 x 45mm x 50mm For existing wall
- Smoke and acoustic sealant sausage - CP 506 8mm bead perimeter joints
