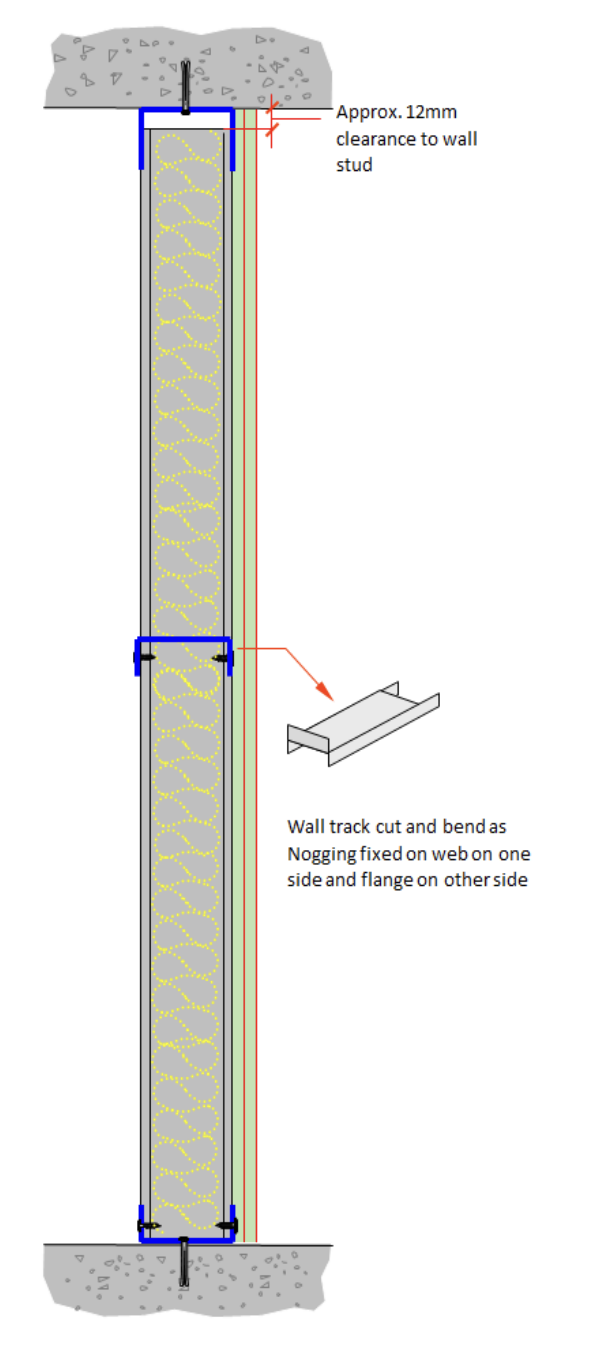

SYSTEM COMPONENTS
- 15 mm Gypsemna moisture-resistant firewall board Single layer board on right side
- 15 mm Gypsemna moisture-resistant firewall board Single layer board on right side
- Gyp 52 mm x 50mm x 0.60 mm deflection head track As top track
- Gyp 52 mm x 0.50 mm wall track As bottom track
- Gyp 52 mm x 0.50 mm wall track as nogging at mid span
- Gyp 50 mm x 0.80 mm wall stud - 3.0m back to back spaced at 300 mm centers
- Wedge anchor - 6 x 40 mm spaced 300 mm centers
- Waferhead screw M4.2 x 13 Metal-to-metal screw
- Self tapping screw M3.5 x 35 mm for board fixing
- Self tapping screw M3.5 x 45 mm for board fixing
- Jointing tape - Fibre For joint finishing
- JC 100 - Jointing compound For joint finishing
- Smoke and acoustic sealant sausage - CP 506 8 mm bead perimeter joints
- Glasswool 50mm thick - 24kg/m3 Thermal insulation
related downloads
- Technical Data sheet
