Overview

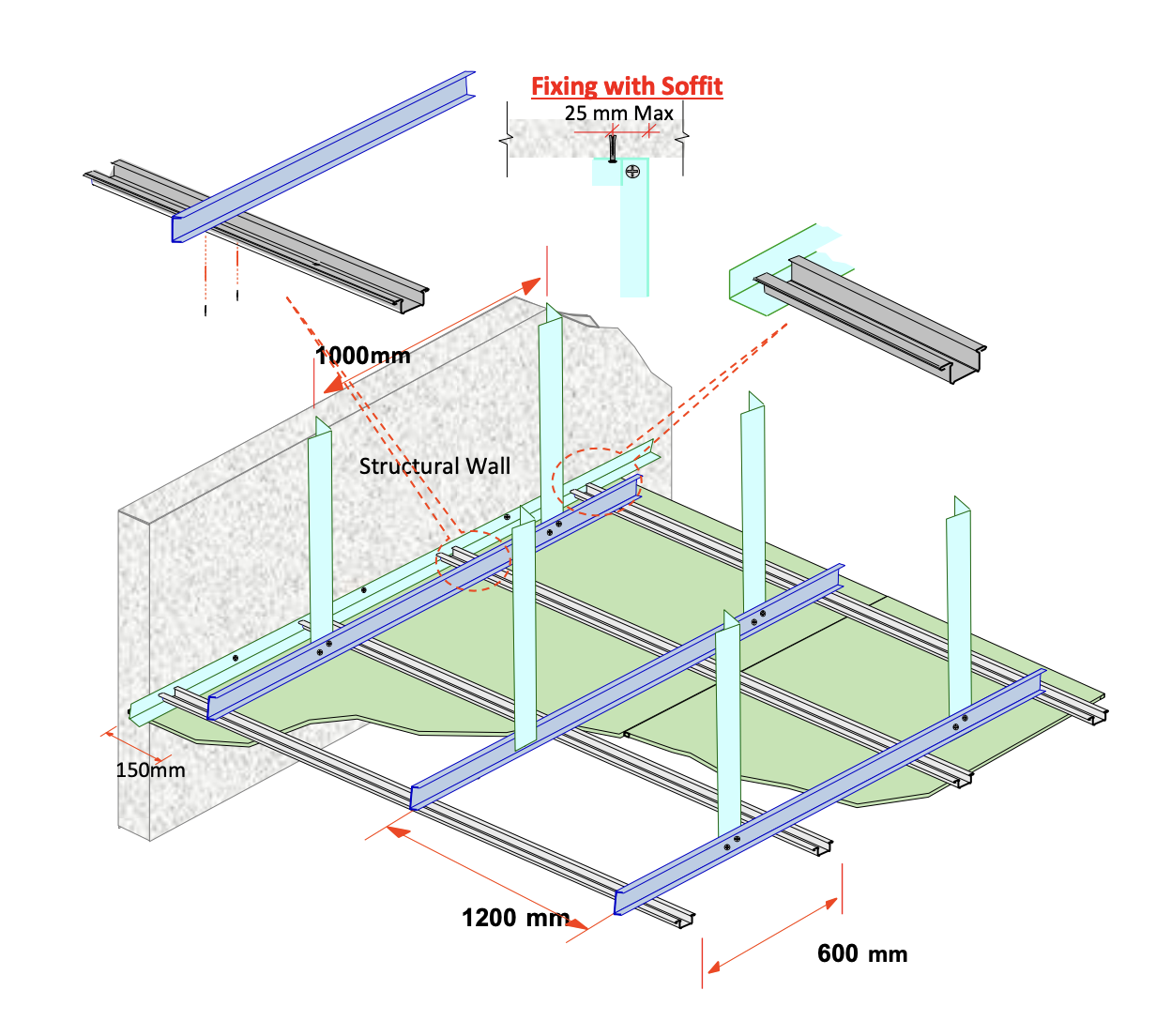

Single layer of 12.5 mm concealed ceiling with suspension - Rigid system
SYSTEM COMPONENTS
- 12.5 mm Gypsemna regular gypsum board Board on bottom
- Main channel 38 x 12 x 12, 0.50 mm as main runner 1,200 mm max centers
- Furring channel 64 x 35 x 23, 0.50 mm as cross runner 600 mm max centers
- GI L - Angle 25 x 25, 0.50 mm as suspension 1,000 mm max centers
- GI L - Angle 25 x 25, 0.50 mm as perimeter wall angle
- Wedge anchor - 6 x 40 mm as suspension anchor
- Hammer screw - size: 6 x 40 mm wall angle fixing 600 mm max centers
- Waferhead screw M4.2 x 13 Metal-to-metal fixing
- Self tapping screw M3.5 x 25 mm Boards to metal fixing
- Jointing tape - Fibre For joint finishing
- JC 100 - Jointing compound For joint finishing
Overview

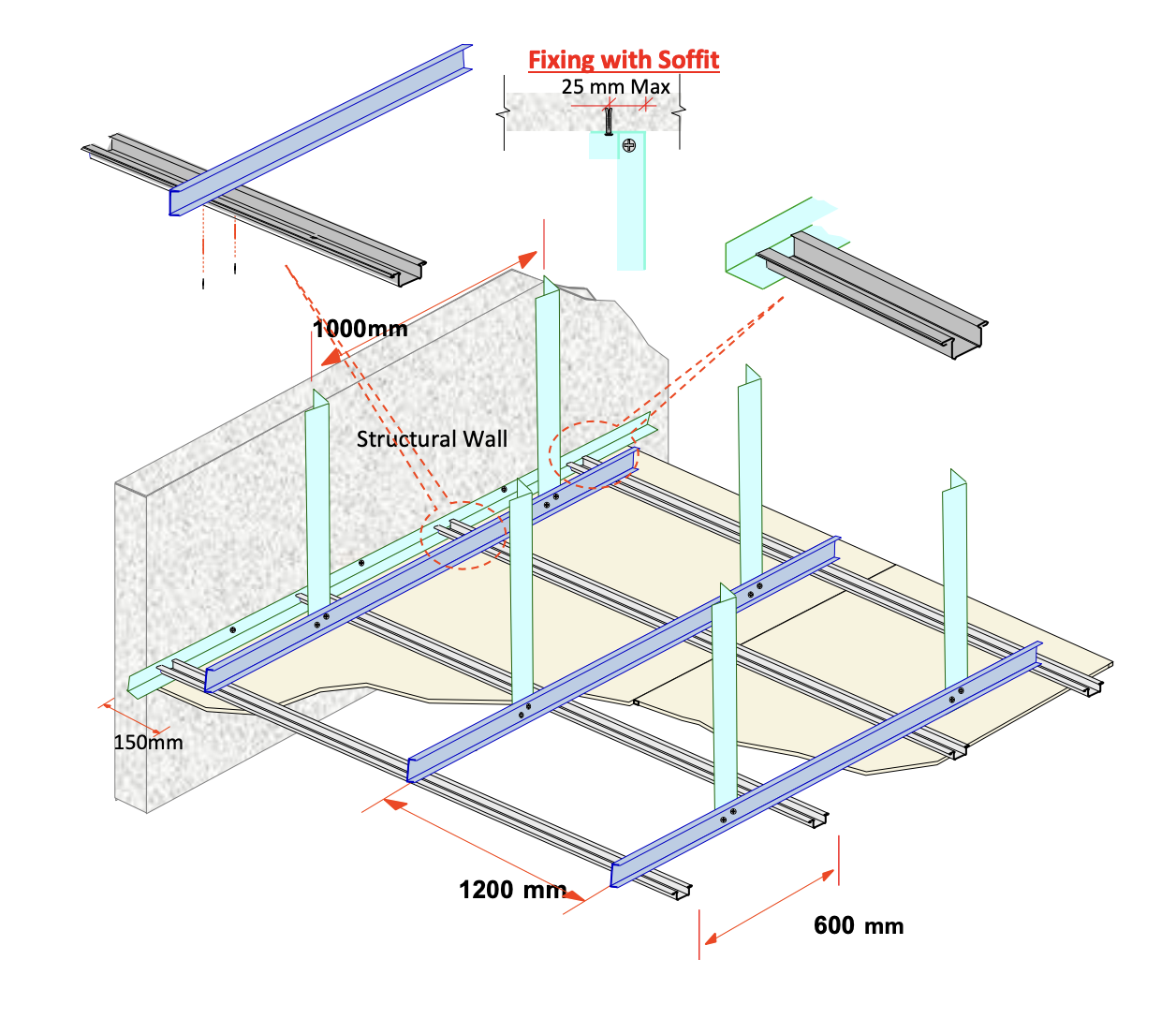

Single layer of 12.5 MR concealed ceiling with suspension - Rigid system
SYSTEM COMPONENTS
- 12.5 mm Gypsemna moisture-resistant gypsum board Board on bottom
- Main Channel 38 x 12 x 12, 0.50 mm as main runner 1,200 mm max centers
- Furring Channel 64 x 35 x 23, 0.50 mm as cross runner 600 mm max centers
- GI L - Angle 25 x 25, 0.50 mm as suspension 1,000 mm max centers
- GI L - Angle 25 x 25, 0.50 mm as perimeter wall angle
- Wedge anchor - 6 x 40 mm as suspension anchor
- Hammer screw - size: 6 x 40 mm wall angle fixing 600 mm max centers
- Waferhead screw M4.2 x 13 Metal-to-metal fixing
- Self tapping screw M3.5 x 25 mm Boards-to-metal fixing
- Jointing tape - Fibre For joint finishing
- JC 100 - Jointing compound For joint finishing
