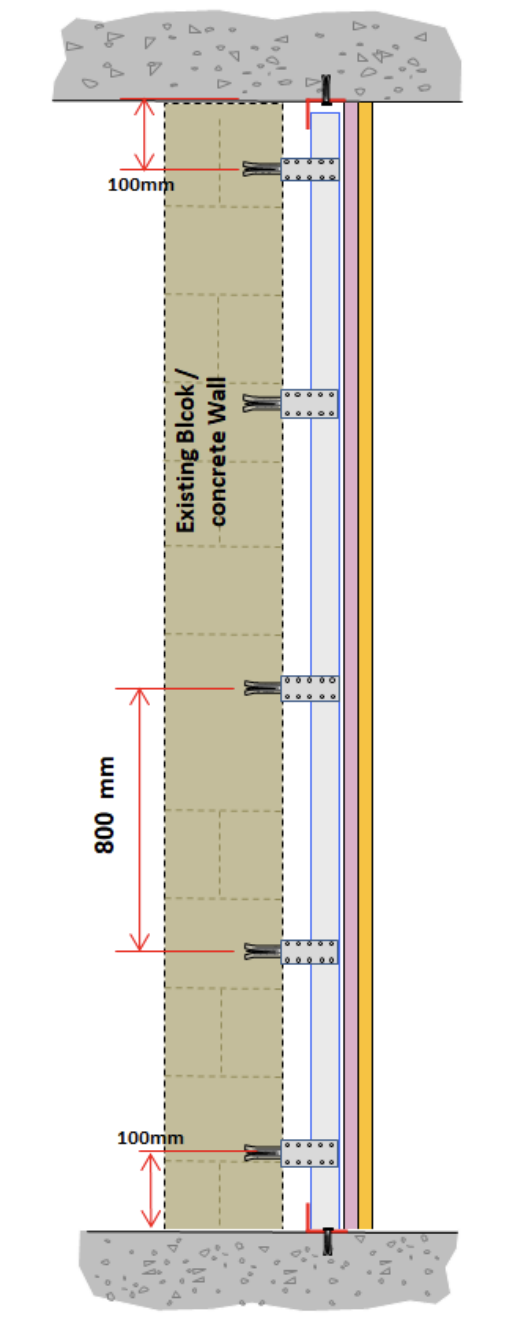

SYSTEM COMPONENTS
- 12.5mm Gypsemna moisture-resistant board H1 1st layer board on right side
- 12.5mm Gypsemna tuff mold & moisture-resistant board 2nd layer board on right side
- Main channel 38 x 12 x 12, 0.50 mm spaced at 600 mm centers
- Wall liner U bracket 85 mm spaced at 800 mm centers
- GI L-angle 25 x 25, 0.50 mm Bottom track
- Wedge anchor - 6 x 40 mm spaced at 600 mm centers
- Shield anchor M6 x 45 mm x 50 mm Block wall fixing
- Waferhead screw M4.2 x 13 Metal-to-metal fixing
- Self tapping screw M3.5 x 25mm 1st board fixing
- Self tapping screw M3.5 x 45mm 2nd board fixing
- Jointing tape - Fibre For joint finishing
- JC 100 - Jointing compound For joint finishing
