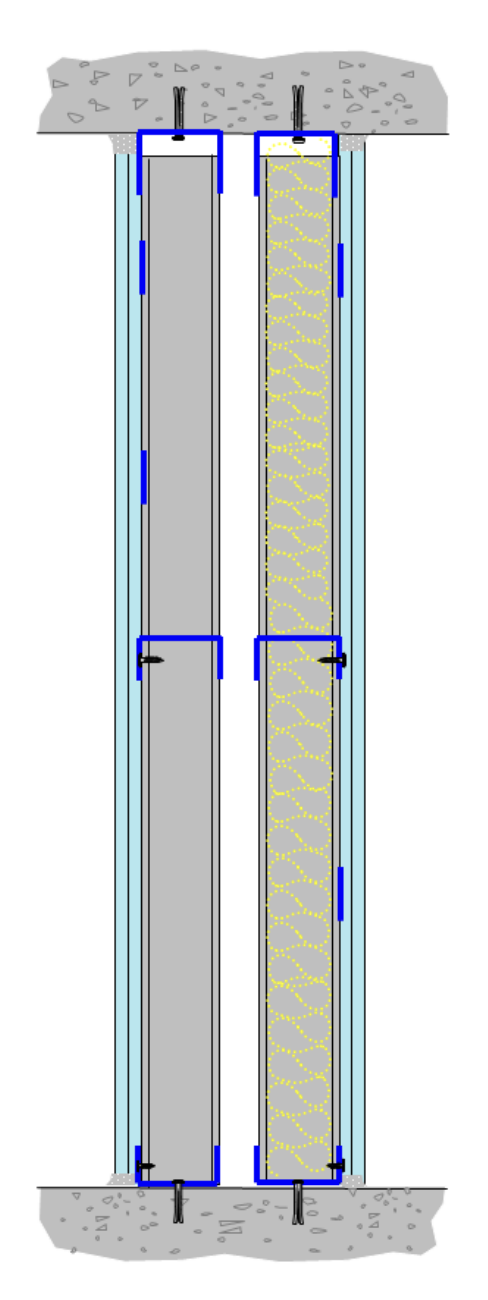

SYSTEM COMPONENTS
- 13 mm Gypsemna glassmat board 2nd layer board on LS
- 13 mm Gypsemna glassmat board 1st layer board on LS
- 13 mm Gypsemna glassmat board 1st layer board on RS
- 13 mm Gypsemna glassmat board 2nd layer board on RS
- Gyp 52 mm x 50 mm x 0.60 mm deflection head track As top track
- Gyp 52 mm x 0.60 mm wall track As bottom track
- Gyp 52 mm x 0.60 mm wall track at mid space As nogging
- Gyp 50 mm x 0.60 mm wall stud - 3.0 m 400 mm spacing
- Wedge anchor - 6 x 40 mm 400 mm spacing
- Waferhead screw M4.2 x 13 Metal-to-metal fixing
- Self tapping screw M3.5 x 25 mm For board fixing
- Self tapping screw M3.5 x 45 mm For board fixing
- Jointing tape - Fibre For joint finishing
- JC 100 - Jointing compound For joint finishing
- Hilti - Fire and acoustic sealant sausage - CP 606 8mm bead perimeter joints
- Gypsemna audio insul 50mm thick - 12kg/m3 Thermal insulation
- Gyp flat strap - 50 mm x 0.50 mm thick 100 mm below & outer board joint
