Ceiling

Fire Rated Ceiling System

1HR-FRC-CHS1FW150, 2HR-FRC-CHS1FW150, 2HR-FRC-CS1FW150

Fire Rating
2HR Shaft
  • 2HR Shaft
  • 1HR Shaft
  • 2HR Stud & Track

Overview

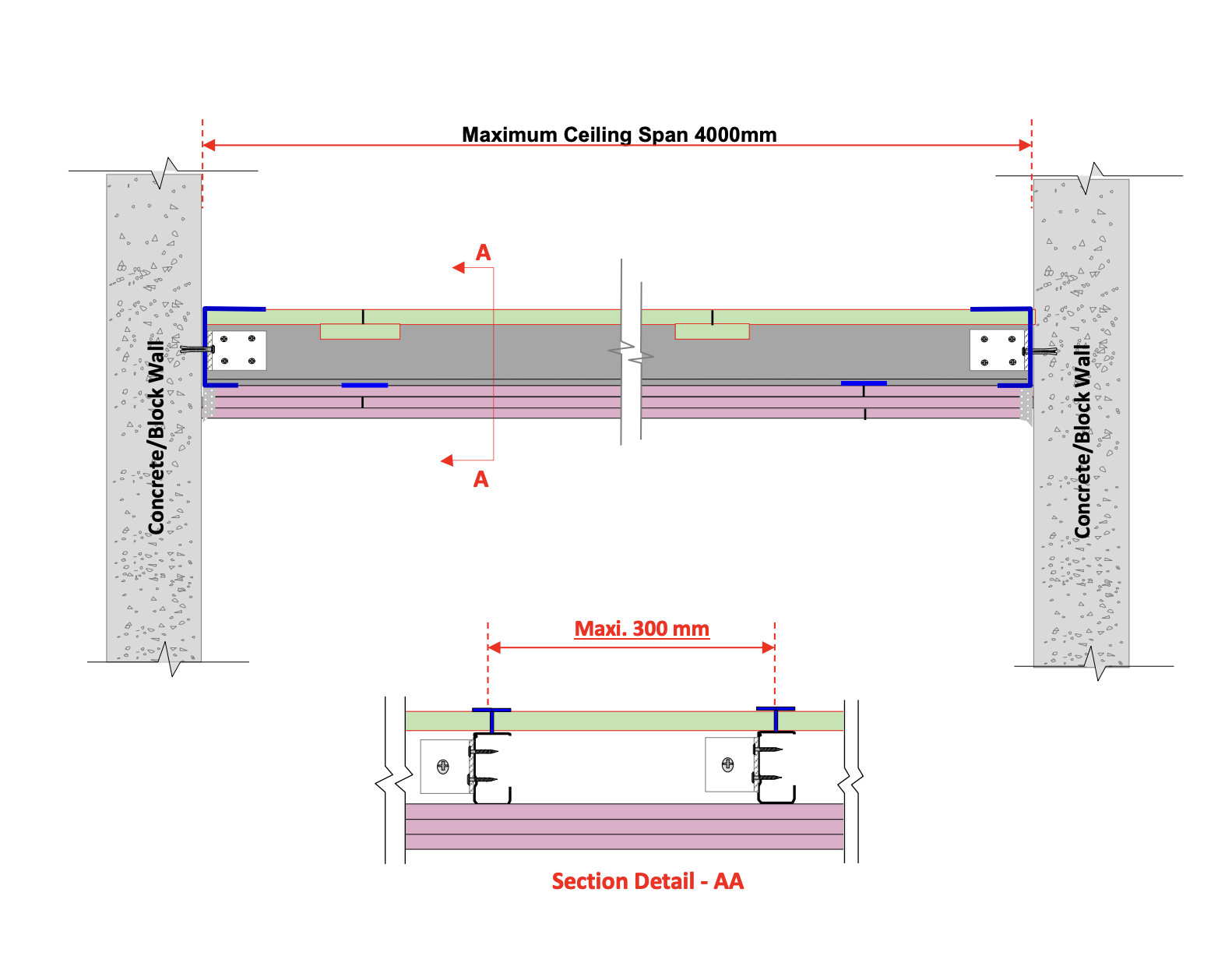

2 Hour Fire Rated Shaft Ceiling System - CH Stud

SYSTEM COMPONENTS
  • 25 mm Gypsemna moisture-resistant firewall core board Top board
  • 15 mm Gypsemna firewall board 2 Layers Bottom boards
  • 25 mm Gypsemna moisture-resistant firewall core board 1,000 mm core board joints
  • 102 mm J-deflection head track 75 x 50 x 0.80 mm Perimeter track
  • 102 mm CH STUD 0.6 mm - 3.0 mm spaced 600 mm centers
  • 102 mm E STUD 0.6 mm - 3.0 mm spaced 3,000 mm centers
  • Gyp flat strap - 90 x 0.90 mm thick Behind board joints
  • 75 x 75 x 1.5 mm L-bracket Both ends
  • Wedge anchor - 6 x 40 mm To concrete wall fixing
  • Waferhead screw M4.2 x 13 Metal-to-metal fixing
  • Self drilling screw M3.5 x 35 mm 1st layer board fixing
  • Self drilling screw M3.5 x 45 mm 2nd layer board fixing
  • Jointing tape - Fibre For joint finishing
  • JC 100 - Jointing compound For joint finishing
  • Hilti - Fire & acoustic sealant sausage - CP 606 8 mm bead all perimeter joints

Overview

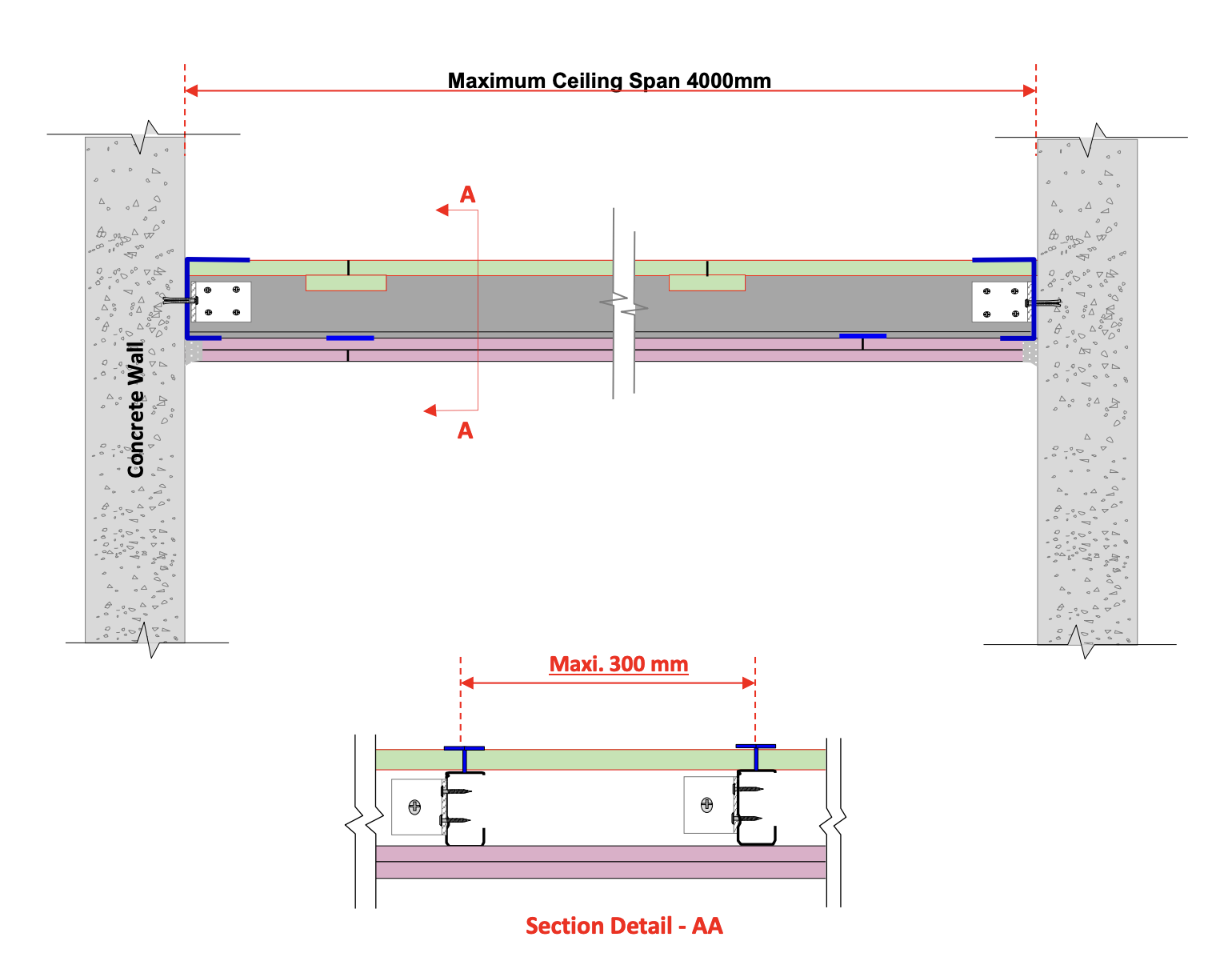

1 Hour Fire Rated Shaft Ceiling System - CH Stud

SYSTEM COMPONENTS
  • 25 mm Gypsemna moisture-resistant firewall core board Top board
  • 15 mm Gypsemna firewall board 2 layers Bottom boards
  • 25 mm Gypsemna moisture-resistant firewall core board 1,000 mm core board joints
  • 102 mm J-deflection head track 75 x 50 x 0.80 mm Perimeter track
  • 102 mm CH STUD 0.6 mm - 3.0 mm spaced 600 mm centers
  • 102 mm E STUD 0.6 mm - 3.0 mm spaced 3,000 mm centers
  • Gyp Flat Strap - 90 x 0.90 mm thick Behind board joints
  • 75 x 75 x 1.5 mm L-Bracket Both ends
  • Wedge anchor - 6 x 40 mm To concrete wall fixing
  • Waferhead screw M4.2 x 13 Metal-to-metal fixing
  • Self drilling screw M3.5 x 35 mm 1st layer board fixing
  • Self drilling screw M3.5 x 45 mm 2nd layer board fixing
  • Jointing tape - Fibre For joint finishing
  • JC 100 - Jointing compound For joint finishing
  • Hilti - Fire & acoustic sealant sausage - CP 606 8 mm bead all perimeter joints

Overview

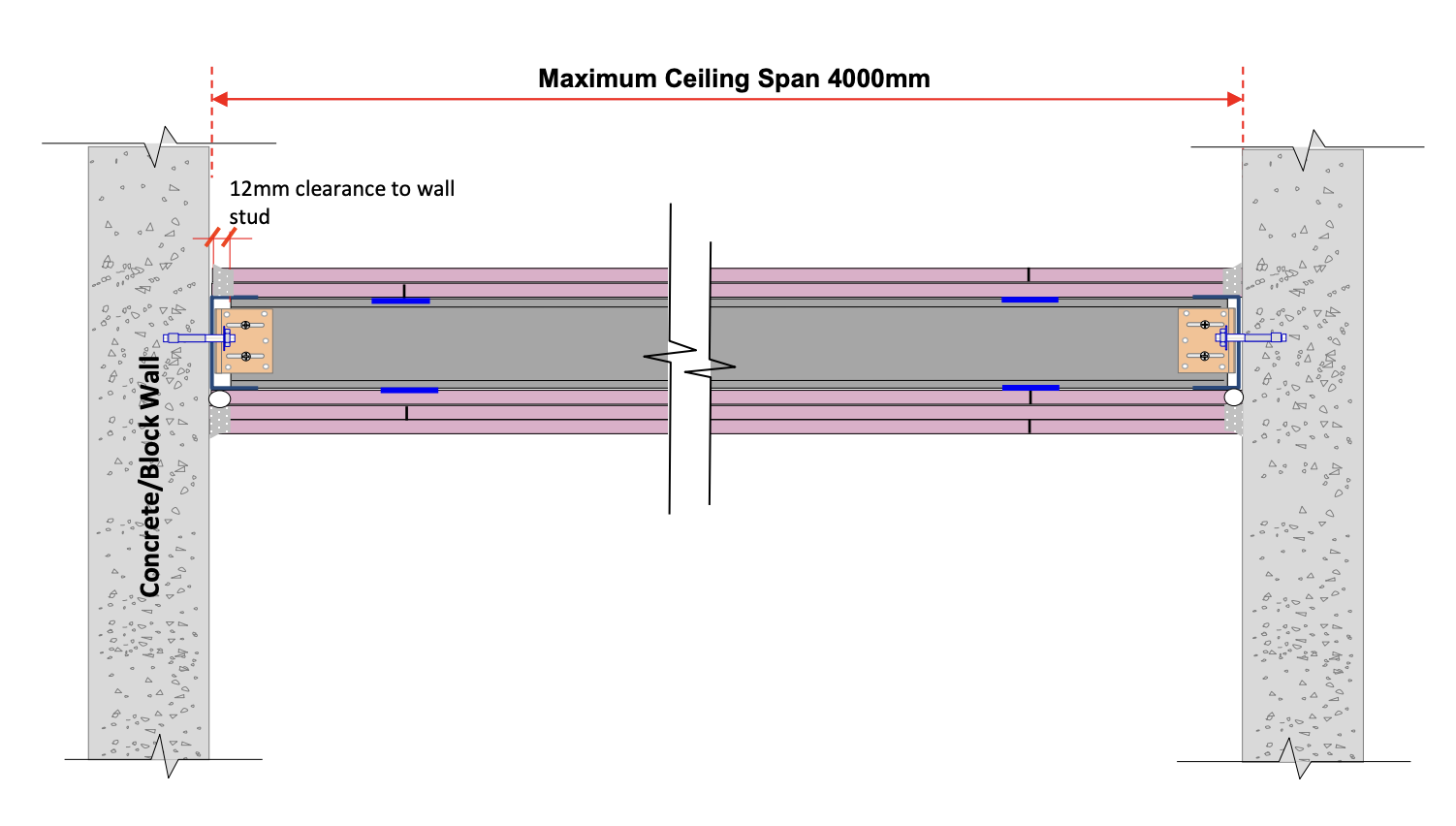

2 Hour Fire Rated Ceiling System - Stud & Track

SYSTEM COMPONENTS
  • 15 mm Gypsemna firewall board 2 layers Top board
  • 15 mm Gypsemna firewall board 3 layers Bottom boards
  • Gyp 100 x 0.90 mm wall stud - 3.0 m 400 mm max centers
  • Gyp 102 x 50 x 0.90 mm deflection head track Both ends
  • Gyp flat strap - 90 x 0.90 mm thick Behind board joints
  • Slotted web cleat 75 mm Both ends
  • HSA M8 x 54.5 mm standard stud anchor For fixing of slotted cleat
  • Hex washer head self drilling screws M5.5 x 25 For bracket of stud fixing
  • Waferhead screw M4.2 x 13 Metal-to-metal fixing
  • Self drilling screw M3.5 x 35 mm 1st layer board fixing
  • Self drilling screw M3.5 x 45 mm 2nd layer board fixing
  • Self drilling screw M3.5 x 55 mm 3rd layer board fixing
  • Jointing tape - Fibre For joint finishing
  • JC 100 - Jointing compound For joint finishing
  • Backing rod 10 mm Zero
  • Hilti - Fire & acoustic sealant sausage - CP 606 8 mm bead all perimeter joints
