Drywall

G2 Series Braced Chase Wall

GCW2TF125

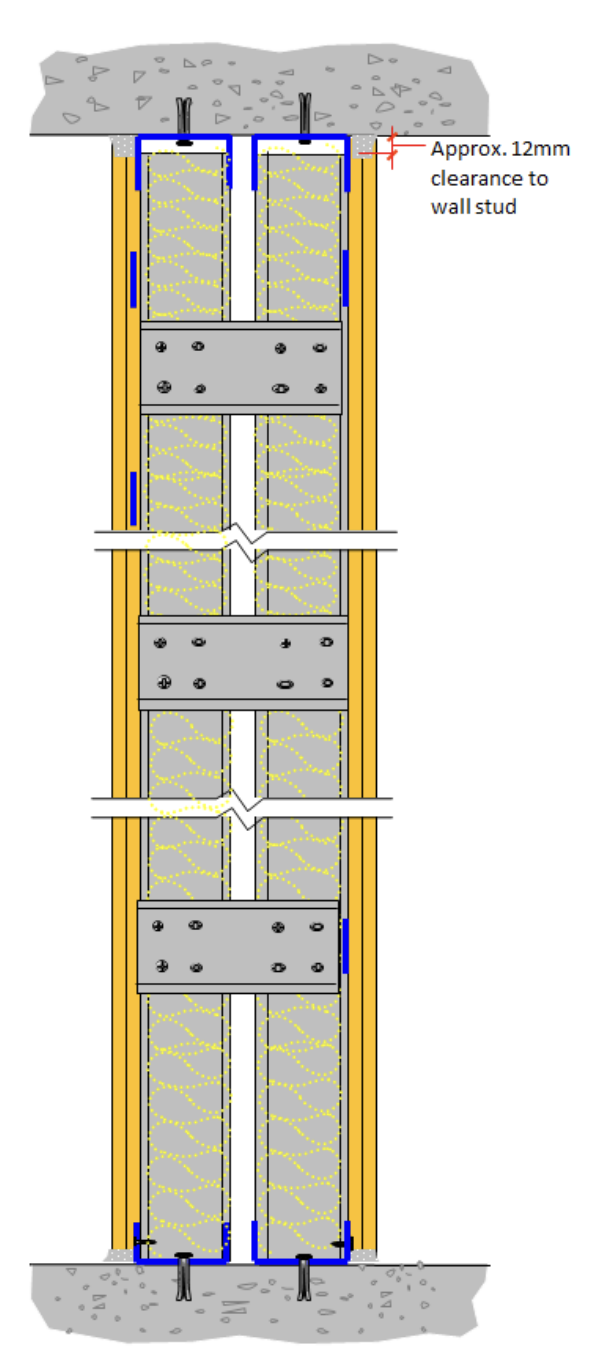

Chase Wall – 2 x 12.5 TF on both side of a 64 TWIN UC Frame

SYSTEM COMPONENTS
  • 12.5 mm Gypsemna tuff board 2nd layer board on LS
  • 12.5 mm Gypsemna tuff board 1st layer board on LS
  • 12.5 mm Gypsemna tuff board 1st layer board on RS
  • 12.5 mm Gypsemna tuff board 2nd layer board on RS
  • Gyp 66 mm x 50 mm x 0.60 mm deflection head track As top track
  • Gyp 66 mm x 0.60 mm wall track As bottom track
  • Gyp 64 mm x 0.60 mm wall stud - 3.0 m As bracing track
  • Gyp 64 mm x 0.60 mm wall stud - 3.0 m 600 mm spacing
  • Wedge anchor - 6x40 mm 600 mm spacing
  • Waferhead screw M4.2 x 13 Metal-to-metal fixing
  • Self tapping screw M3.5 x 25 mm For board fixing
  • Self tapping screw M3.5 x 25 mm For board fixing
  • Jointing tape - Fibre For joint finishing
  • JC 100 - Jointing compound For joint finishing
  • Hilti - Fire and acoustic sealant sausage - CP 606 8 mm bead perimeter joints
  • Rockwool 50 mm thick - 48kg/m3 Thermal Insulation
  • Gyp flat strap - 50 mm x 0.50 mm thick 100 mm below & outer board joint
