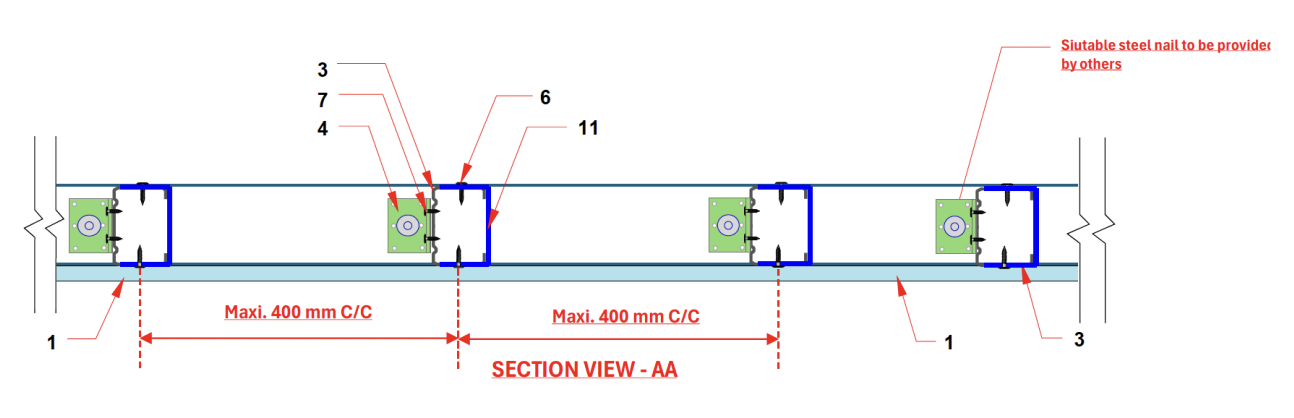

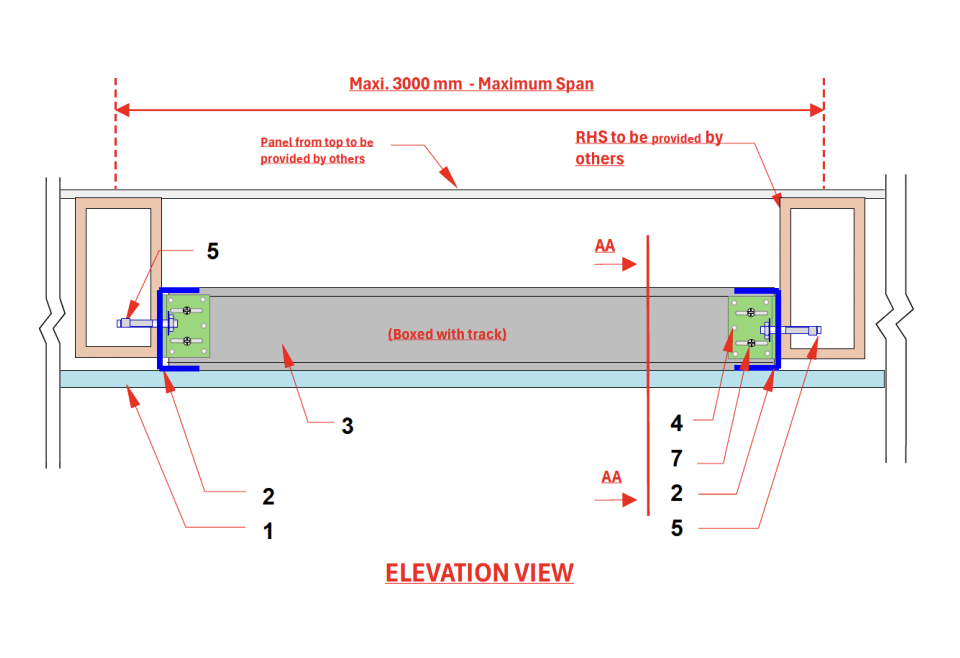

System component
- 13 mm Gypsemna Glassmat Board Bottom Side
- Gyp 102 x 50 x 1.20 mm Deflection Head Track Top and Bottom Track
- Gyp 100 x 1.20 mm Wall Stud - 3.0 m spaced at 400 mm centers
- Slotted Web Cleat 75 mm Bracing
- Suitable Anchor - By others To Structural Wall Fixing
- Waferhead Screw M4.2 x 13 mm Metal to Metal Fixing
- Hex Head Self Drilling Screws M4.8 x 19 Bracket to Stud Fixing
- Self Drilling Screw M3.5 x 25 mm Board Screw
- Jointing Tape - Fibre For Joint Finishing
- Jointing Compound - Exterior For Joint Finishing
- Gyp 102 mm x 1.20 mm Wall Track For Boxing with Stud
