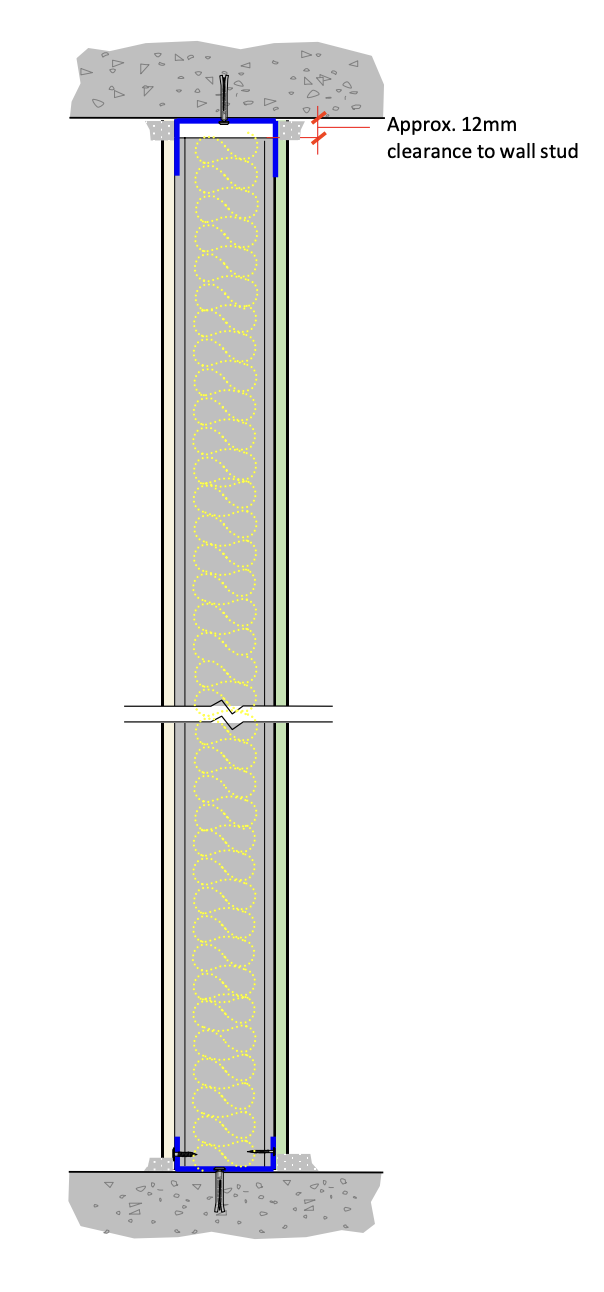

SYSTEM COMPONENTS
- 12.5 mm Gypsemna moisture-resistant board H1 Board on left side
- 12.5 mm Gypsemna moisture-resistant board H1 Board on right side
- Gyp 52 mm x 50 mm x 0.60 mm deflection head track As top track
- Gyp 52 mm x 0.50 mm wall track As bottom track
- Gyp 50 mm x 0.50 mm wall stud - 3.0m 600 mm spacing
- Gyp flat strap - 50 mm x 0.55 mm thick 100 mm below top track and outer horizontal board joints
- Wedge anchor - 6x40 mm 600 mm centers
- Waferhead screw M4.2 x 13 Metal-to-metal fixing
- Self tapping screw M3.5 x 25 mm For board fixing
- Jointing tape - Fibre For joint finishing
- Jointing compound - Exterior For joint finishing
- Hilti - Fire and acoustic sealant sausage - CP 606 Zero
- Gypsemna audio insul 50mm thick 16kg/m3
