Overview

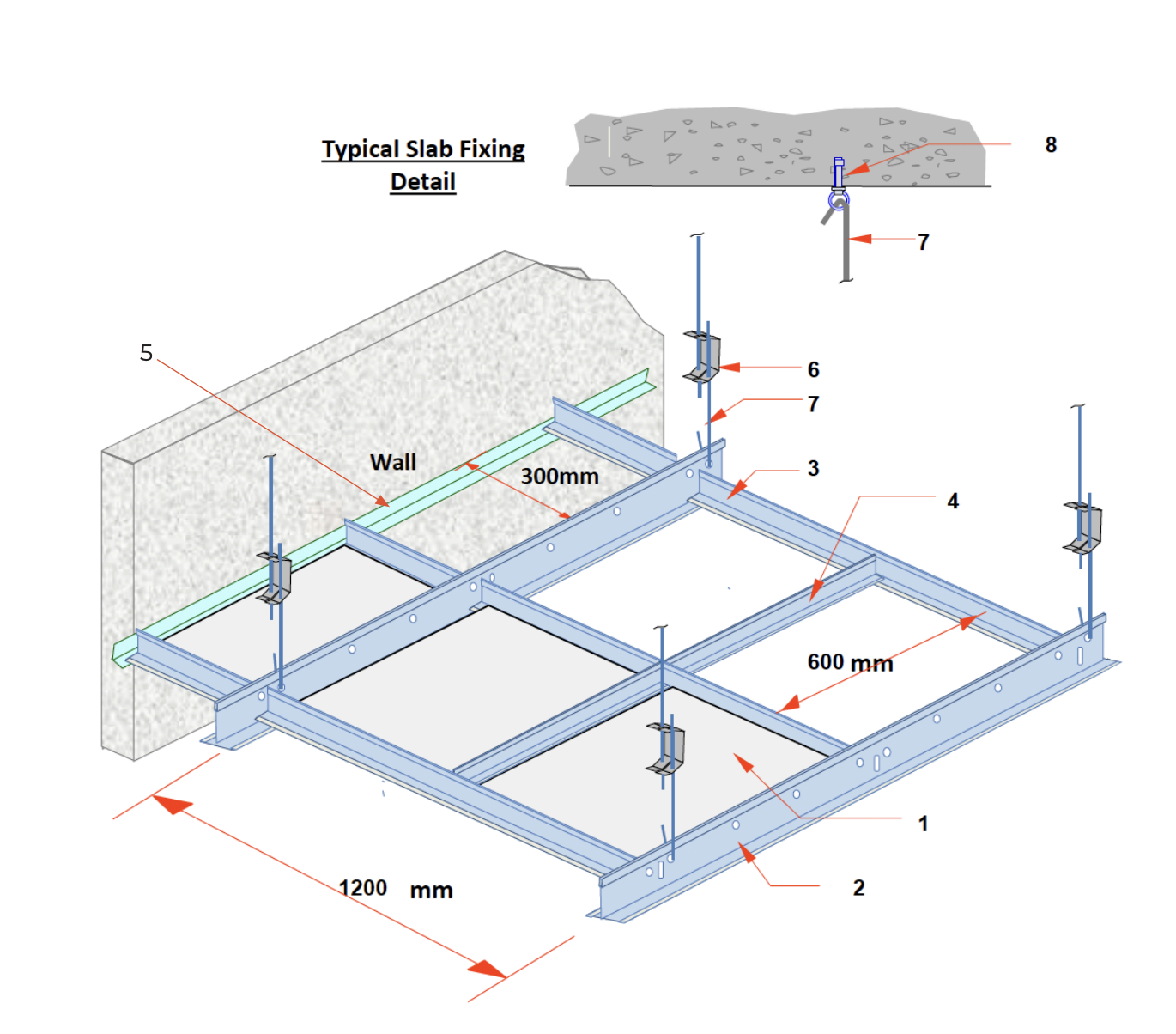

System component
- Gypsemna gypsum ceiling tile 595 x 595 x 12.0mm Board on bottom
- Gypsemna T24 main tee - 38 mm x 24 mm x 3600 mm 1,200 mm max centers
- Gypsemna T24 cross tee - 26 mm x 24 mm x 1200 mm 600 mm max centers
- Gypsemna T24 cross tee - 26 mm x 24 mm x 600 mm 1,200 mm max centers
- Gypsemna T24 perimeter angle - 24 mm x 24 mm x 3000 mm Zero
- Double spring clip - 4mm Zero
- 4mm wire rod - 40m Zero
- 6 x 60mm ceiling anchor with eye hole Zero
