Ceiling

External Suspension Conventional Ceiling System

EC1GM13

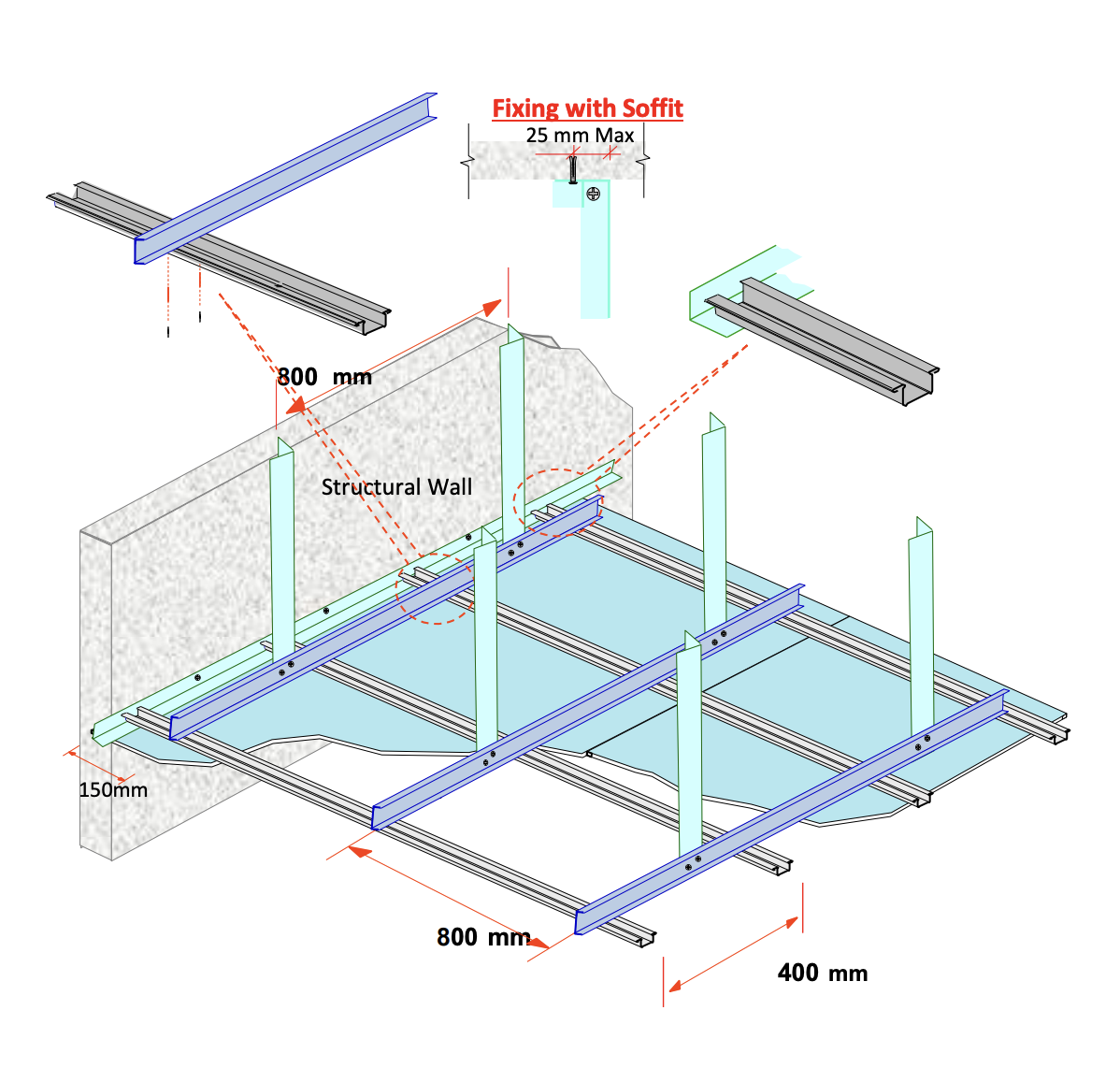

Single Layer of 13 GM Concealed Ceiling with Suspension Rigid System

System components

  • 13 mm Gypsemna Glassmat Board Board on Bottom
  • Main Channel 38 x 12 x 12 , 0. 60 mm as Main Runner 800 mm max centers
  • Furring Channel 64 x 35 x 23, 0.60 mm as Cross Runner 400 mm max centers
  • GI L-Angle 25 x 25, 0.60 mm as Suspension 800 mm max centers
  • GI L-Angle 25 x 25, 0.60 mm as perimeter angle
  • Wedge Anchor - 6 x 40 mm as suspension anchor
  • Hammer Screw, Size: 6 x 40 mm Wall Angle Fixing 600 mm max centers
  • Waferhead Screw M4.2 x 13 mm Metal to Metal Fixing
  • Self Tapping Screw M3.5 x 25 mm Boards to Metal Fixing
  • Jointing Tape - Fibre For Joint Finishing
  • Jointing Compound - Exterior For Joint Finishing
