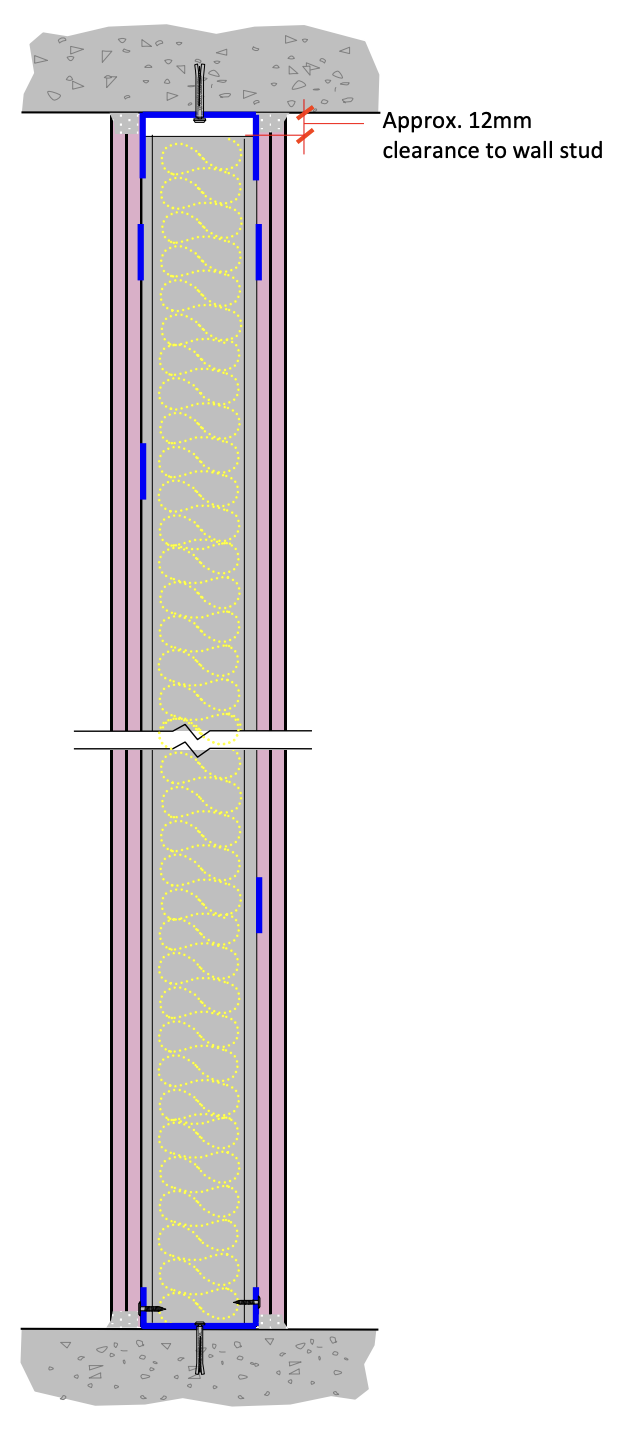

SYSTEM COMPONENTS
- 12.5 mm Gypsemna firewall board 2nd layer board on left side
- 12.5 mm Gypsemna firewall board 1st layer board on left side
- 12.5 mm Gypsemna firewall board 1st layer board on right side
- 12.5 mm Gypsemna firewall board 2nd layer boardon right side
- Gyp 52 mm x 50 mm x 0.60 mm deflection head track As top track
- Gyp 52 mm x 0.50 mm wall track As bottom track
- Gyp 50 mm x 0.50 mm wall stud - 3.0 m 600 mm spacing
- Gyp flat strap - 50 mm x 0.50 mm thick 100 mm below top track and outer horizontal board joints
- Wedge anchor - 6 x 40 mm 600 mm centers
- Waferhead screw M4.2 x 13 Metal to metal fixing
- Self tapping screw M3.5 x 25 mm For 1st layer board fixing
- Self tapping screw M3.5 x 45 mm For 2nd layer board fixing
- Jointing tape - Fibre For joint finishing
- JC100 - Jointing compound For joint finishing
- Hilti - Fire and acoustic sealant sausage CP 606
- Gypsemna audio insul 50 mm thick 16kg/m3
