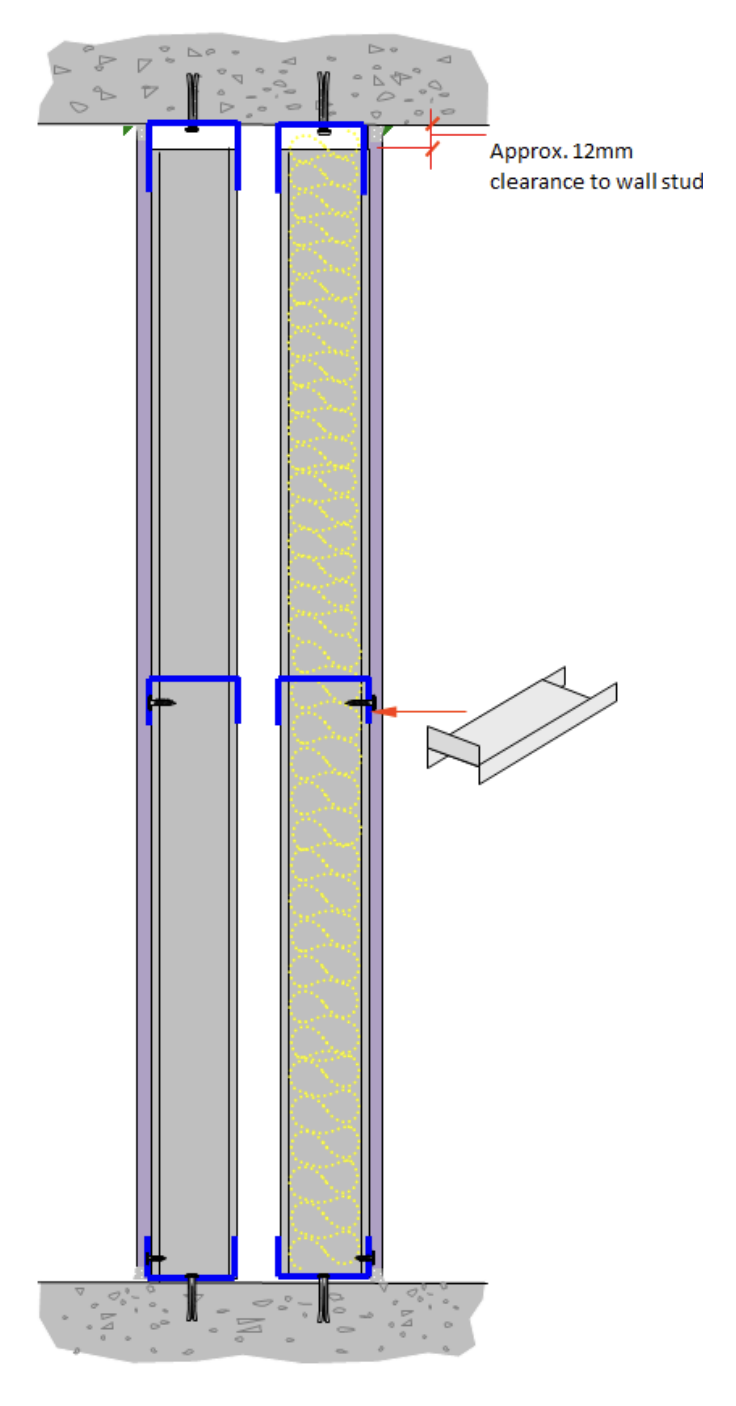

SYSTEM COMPONENTS
- 12.5 mm Gypsemna Moisture Resistant Sound Protect board One Board on Left Side
- 12.5 mm Gypsemna Moisture Resistant Sound Protect board One Board on Right Side
- Gyp 52 mm x 50 mm x 0.60 mm Deflection Head Track x2 As Top Track
- Gyp 52 mm x 0.60 mm Wall Track x2 As Bottom Track
- Gyp 50 mm x 0.60 mm Wall Stud - 3.0 m spaced at 600 mm centers
- Gyp 52 mm x 0.60 mm Wall Track x2 As Nogging
- Wedge Anchor - 6 x 40 mm spaced at 600 mm centers
- Wafer head Screw M4.2 x 13 mm Metal to Metal Fixing
- Self-Tapping Screw M3.5 x 25 mm For Board Fixing
- Jointing Tape - Fibre For Joint Finishing
- JC 100 - Jointing Compound For Joint Finishing
- Gypsemna Audio Insul 50 mm thick - 12 kg/m³ Thermal & Acoustic Insulation
- Smoke and Acoustic Sealant Sausage - CP 506 8 mm Bead Perimeter Joints
